Smart Door Access & Security Alarm Control Board

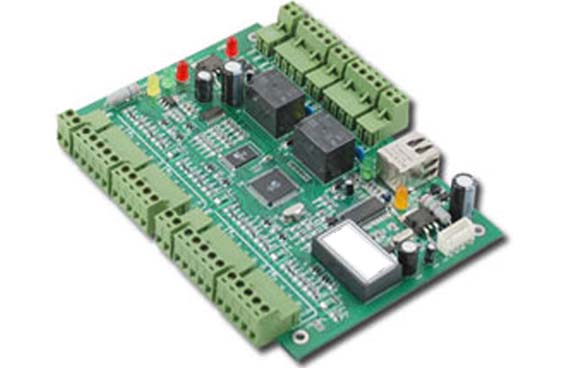

ABS-2.Net Two-Door TCP/IP Network Access Control Panel, and capable to handle 2 doors / 4 readers with a single controller
Support 2 relays output for controlling switch signal, With Uninterruptible Power Supply interface,Support opening door button, Anti-pass back Function
Support 2 relays output for controlling switch signal, With Uninterruptible Power Supply interface,Support opening door button, Anti-pass back Function
| Info |
|
* ABS-2.Net is a two-door TCP/IP Network Access Control Panel, and now capable to handle 2doors / 4 readers with a single controller. * Control of Memory up to 20,000 Users / up to 100,000 Event Buffers. * Network Communication via TCP/IP. * Real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; alarm function. * In addition, Professional function for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail. |
| Feature |
|
* Stand-alone (with 128k Memory) or online with PC (TCP/IP) * Support 2 relays output for controlling switch signal * With Uninterruptible Power Supply interface * Support opening door button * Anti-pass back Function * Wiegand 26 interface for Identify mode of Card reader, Password, fingerprint reader, bar-code reader (Or any combination) * With Door broken detective function, micro switch designed to protect reader case damage * Enforcing access code function is for emergencies, auto dial the managing center in real-time when the door is opened by force * Storage capacity: 20,000 cards and 100,000 records Or 60,000 cards and 60,000records * Support SDK |
| Register Method |
| Card reader, Password, fingerprint reader, bar-code reader (Or any combination) |
| Item | Description |
| Communication | TCP/IP 10M/100M adaptive |
| Size of PCB board | 160mm *106mm |
| Size of Case | 273mm*228mm*65mm |
| Power Supply | 12VDC 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one etc) |
| Quantity of Readers | 2 pairs |
| Door Controled | 2 pairs |
| Door opening time extending setting | 1-600 seconds(adjustable) |
| Max q'ty of controller | No limit |
| Operation Temperature | - 40 C~70 C |
| Operation Humidity | 10-90 ％ RH ， No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 event buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100m (suggestion distance 80m) |
Please contact us for id & password to download!
 Access Control Panel Case Study Diagram a |
|
Access Control Panel Case Study Diagram b |
|
Access Control Panel Case Study Diagram c |
 Access Control Panel Manual |
-
