ET-F350 Face Time Attendance&Access Control

Face Recognition Time Attendance and Access Control System

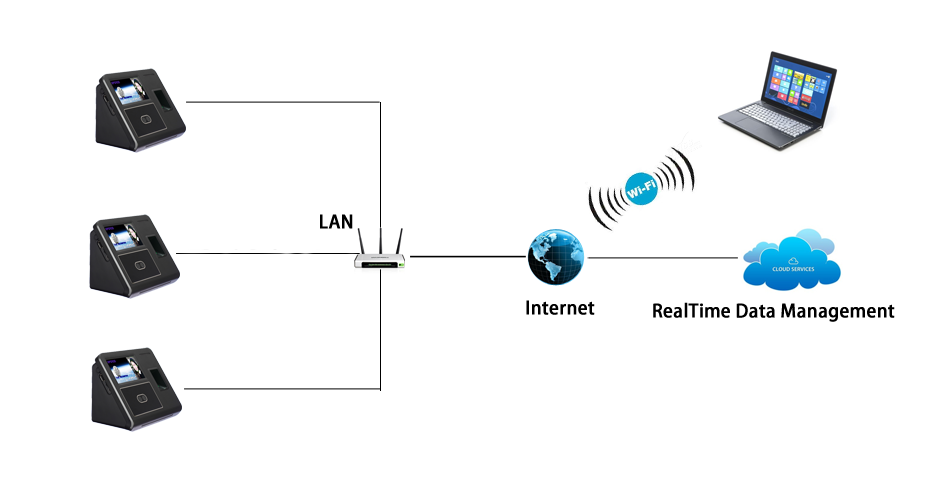

Cloud Hosting Attendance System


Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System

1.Real-time access records

2.Real-time cloud attendance

3.Real-time cloud management

Face Recognition Time Attendance and Access Control System


Hd screens, friendly interface


Face Recognition Time Attendance and Access Control System

Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System


A new attendance


Face Recognition Time Attendance and Access Control System

   The new facial recognition technology, Infrared identification.
Dual cameras three-dimensional high-definition stereo imaging,
Real recognize faces, put an end to generation card punch. Ensure
the attendance of true and accurate.


Face Recognition Time Attendance and Access Control System

Face recognition attendance

Face Recognition Time Attendance and Access Control System

fingerprint attendance

Face Recognition Time Attendance and Access Control System

Password attendance



product superiority


Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System


Software and Configuration


Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System Face Recognition Time Attendance and Access Control System

Installation instructions



Hanging installation

On the wall of the apart from the ground 1.15 meters
installed side by side two standard M3 bolts. Two bolt
center distance between 60-70 - mm, center line parallel
to the ground.Install the machine on the back of the two
bolt holes are aligned, will hang up machine



Desktop put to use

Attendance machine adopts the triangle
three-dimensional appearance design, it
can be placed in the front desk on the
desktop or other platforms used directly,
without additional installation

Face Recognition Time Attendance and Access Control System

Item Description
LCD TFT displayer:  4.3inch HVGA high resolution touch screen
Keypad 7 key Touch type + touch screen input
Face capacity 3, 00
Log Storage capacity 200, 000
Verification mode 1: N, 1:1
Response time ≤1 second
Cammera Omni Vision higher resolution 2pcs camera built-in(Infrared&Normal)
External functions Connect Electronic lock(Access Control), Wiegand Output
Communication l USB 2.0 free driver,10M/100M Ethernet USB HOST,RS485
CPU ATMEL ARM9 400MHz
Memory  512Mb
Flash Memory 1 GB
SD card Optional
FRR 1%
FAR 0.00001%
Work mode online, offline
Language display Simplified Chinese, Traditional Chinese, English
Name display Chinese or English Name, User ID, User picture
Communication TCP/IP, RS485, USB
Identification mode face, password,
Temperature/Humidity 0℃~45℃ / 20%~ 80%
Power supply DC12V/2A
Function Key sign in, sign out, go out, ESC key
Lock output often open/often close
Access control interface wiegand 26/34 optional, output/input optional
Warranty of period 12 months
Size 200*90*65mm
Applications Office/factory/bank/hotel/school etc
