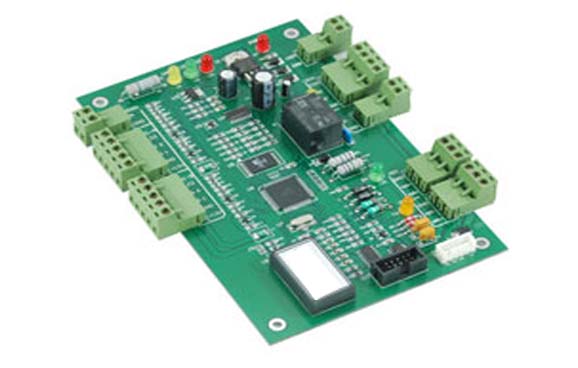

Smart Door Access & Security Alarm Control Board

ABS-1 Single-Door RS485 Network Access Control Panel, and capable to handle 1 doors / 2 readers with a single controller
Support 1 relays output for controlling switch signal, Control of Memory up to 20,000 Users / up to 100,000 Event Buffers

Info

* Control Panel ABS-1 is a single-Door RS485 Network Access Control Panel, and now capable to handle1 doors / 2 readers with a single controller.
* Control of Memory up to 20,000 Users / up to 100,000 Event Buffers.
* Network Communication via RS232 / RS485.
* Real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; alarm function.
* In addition, Professional function for professional users such as bank,cash house, telecom station, power supply station,prison and police station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail.

Feature

* Stand-alone (with 128k Memory) or online with PC (RS232 or RS485)
* Support 1 relays output for controlling switch signal
* With Uninterruptible Power Supply interface
* Support opening door button
* Anti-pass back Function
* Wiegand 26 interface for Identify mode of Card reader, Password, fingerprint reader, bar-code reader (Or any combination)
* With Door broken detective function, micro switch designed to protect reader case damage
* Enforcing access code function is for emergencies, auto dial the managing center in real-time when the door is opened by force
* Storage capacity: 20,000 cards and 100,000 records Or 60,000 cards and 60,000 records
* Support SDK

Register Method

Card reader, Password, fingerprint reader, bar-code reader (Or any combination)

Item	Description
Communication	RS232/RS485, no need jumper and adaptive 9600 bps
Size of PCB board	160mm *106mm
Size of Case	273mm228mm65mm
Power Supply	12VDC 4-7A
Power Consumption of Circuit Board	Less than 100mA
Input Format of Reader	Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one etc)
Quantity of Readers	1pair
Door Controled	1pair
Door opening time extending setting	1-600 seconds(adjustable)
Max q'ty of controller	N*256PCS (N:q'ty of computer serial prot or q'ty of 485 hub port, support 256pcs ports)
Operation Temperature	- 40 C~70 C
Operation Humidity	10-90 ％ RH ， No Condensation
Q ' ty of users	20,000 Users
Q ' ty of Event Buffers(offline)	100,000 event buffers
Power interruption protection measure	High Speed Memory, Records never lose
Max Distance from Reader to Controller	100m (suggestion distance 80m)

Please contact us for id & password to download!

Access Control Panel Case Study Diagram a

Access Control Panel Case Study Diagram b

Access Control Panel Case Study Diagram c

Access Control Panel Manual
